Affodable Cnc Mill







Advantages of Affodable cnc mill
molding
Complicated surfaces and some unobservable processing parts can be processed at one time
high reliability
High machining accuracy, high repeatability, adapt to the processing requirements of aircraft
High processing precision
It has the processing characteristics of high power and high torque suitable for heavy cutting
Strong applicability
Milling, milling, drilling, expansion tapping and other processes can be processed to realize four-sided processing



Machine parameter



	Parameter	unit	V-850
●	TRAVEL
	X-axis travel	mm	800
	Y axis travel	mm	500
	Z-axis travel	mm	500
	Spindle nose to work surface	mm	110-610
	Spindle center to column guide	mm	524
●	workbench
	Table Dimensions (L x W)	mm	1000*500
	T-slot (number-size*spacing)	mm	3*18
	maximum load	Kg	600
●	Spindle
	Spindle speed	rpm	12000
	Spindle motor power	kw	7.5/11
	Spindle taper hole (model/installation size)		BT40（150）
●	feed
	G00 rapid traverse (X axis)	m/min	48
	G00 rapid traverse (Y axis)	m/min	48
	G00 rapid traverse (Z axis)	m/min	48
	G01 Cutting feed	m/min	10/10/10
●	machine precision
	positioning accuracy	mm	0.005/300
	Repeatability	mm	0.005/300





MACHINE RANGE







Our advantage



Technical advantages
With a group of experienced professional Affodable cnc mill engineering designers and sophisticated processing equipment, exquisite processing technology and modern management mode have laid a firm foundation for the production of high-quality products, independent technology, R & D team, perfect supporting production line.
Product advantages
The company has five main product series: vertical machining center series, gantry machining center series, engraving and milling machine series, drilling and tapping series. The research and development and manufacture of non-standard automation special equipment, the high-speed machining center machine company in the series of vertical machining centers is re-launching products. This series of machine tools has the characteristics of high speed, high rigidity, high performance, and high efficiency. The preferred machine tool equipment for industries such as automobiles.
service advantage
Design the plant layout for you, assist you in the installation guidance of the plant electrical circuit, install and debug equipment, train employees for you, provide you with relevant industry information, and provide equipment maintenance and repair services for all CNC machines around the world.

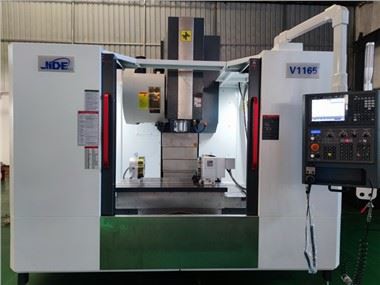

High speed CNC  milling machine features



1. Spindle: High power and speed, high cutting ability and positioning accuracy.
2. X/Y/Z-axis: High speed, fast and accurate movement, high repeat positioning accuracy.
3. Feed system: Adopting high-precision servo motors, high accuracy, smooth movement and fast acceleration.
4. Worktable: High rigidity and pressure, wide range of machining functions.
5. CNC system: Powerful and comprehensive CNC control functions, strong processing functions.
6. Protection cover: Full shields to ensure the safety of operators and machine.
